5 way / 3 position

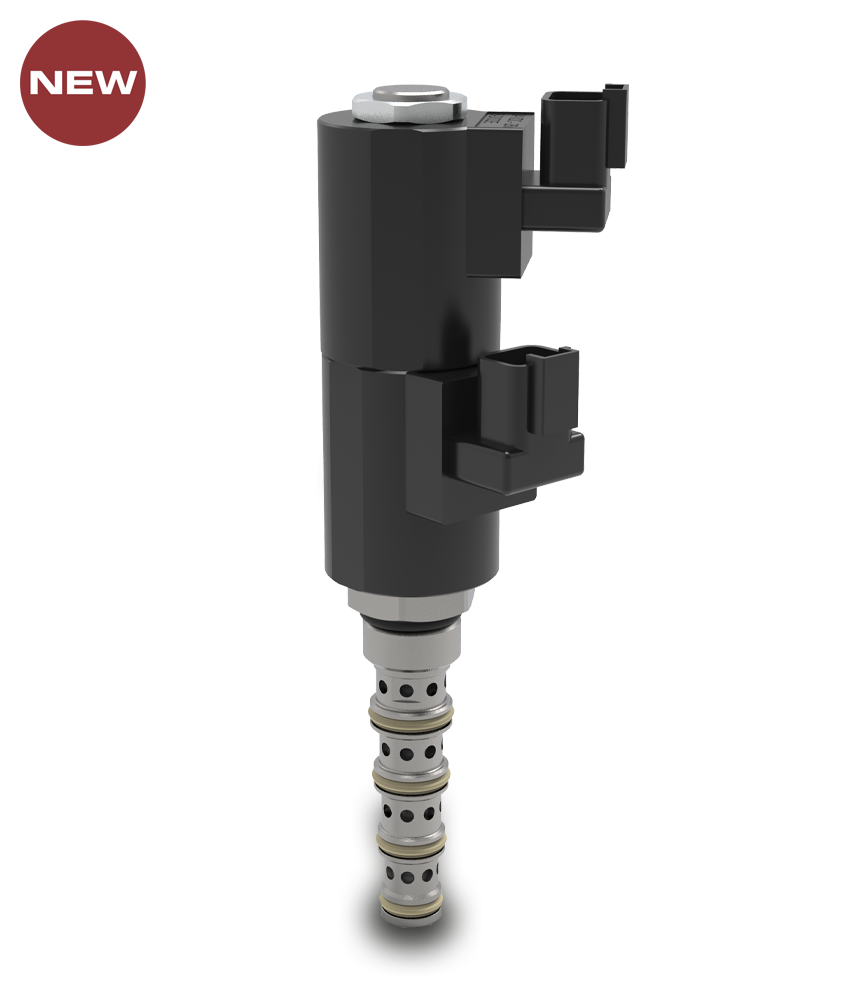

EK10L


Direct acting, spool type

This new valve has been designed to reduce the overall dimensions in order to obtain more compact HICs (Hydraulic Integrated Circuits), and also to increase the performance in terms of pressure, flow rate and pressure drops.


Operational Type: Solenoid
Flowl/min - (US gpm): 20 (5,3)
Max. Pressure bar - (psi): 250 (3600)
Cavities: SAE 10
