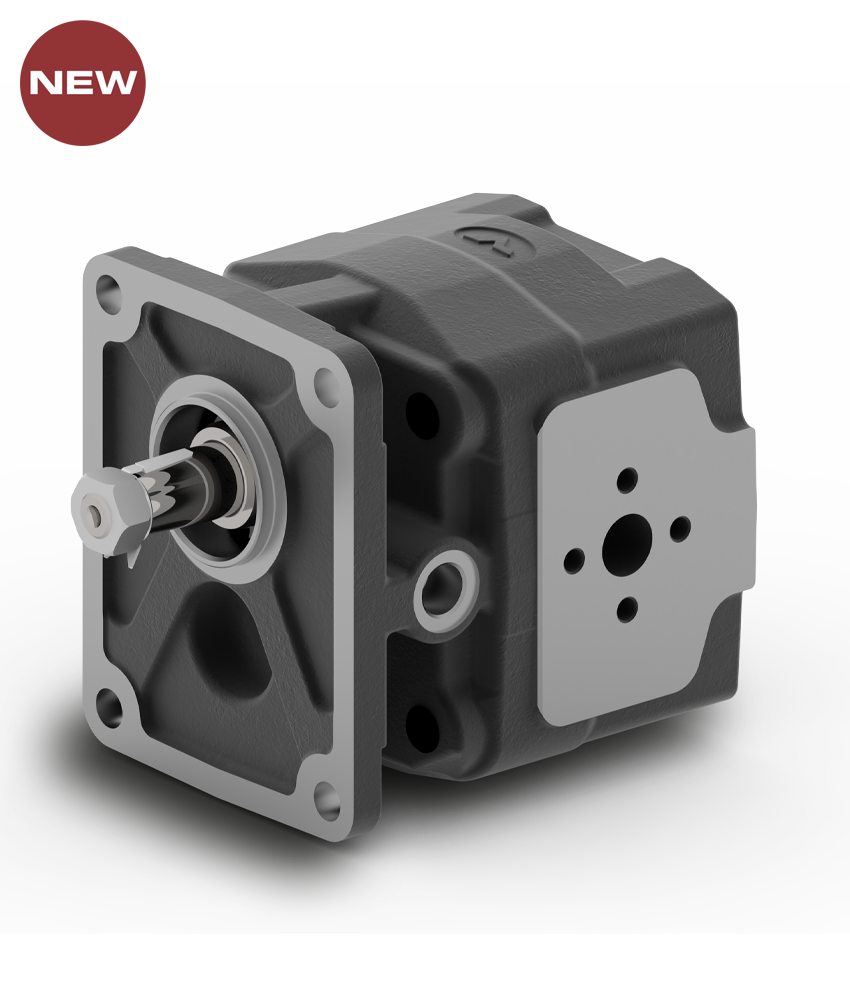

Cast iron gear motors

3TMW - Group 3


Two piece motors with cast iron body  and flange.
Wide range of shafts and flanges.
Configurations with integrated valves are available.
These motors are particularly suitable for all applications where traditional aluminum  motors are used at the limit of their performance; eg. for installation on mobile equipment intended for heavy duty operating cycles, where pressures or mechanical stresses are typically higher.



Group: Group 3
Displacement cm ³/giro - (in ³/rev): Group 3 - from 23,9 to 79,8 (from 1,46 to 4,87)
Max. Pressure bar - (psi): up to 300 (4350)
Speed rotation rpm: up to 3000
