Sectional valves

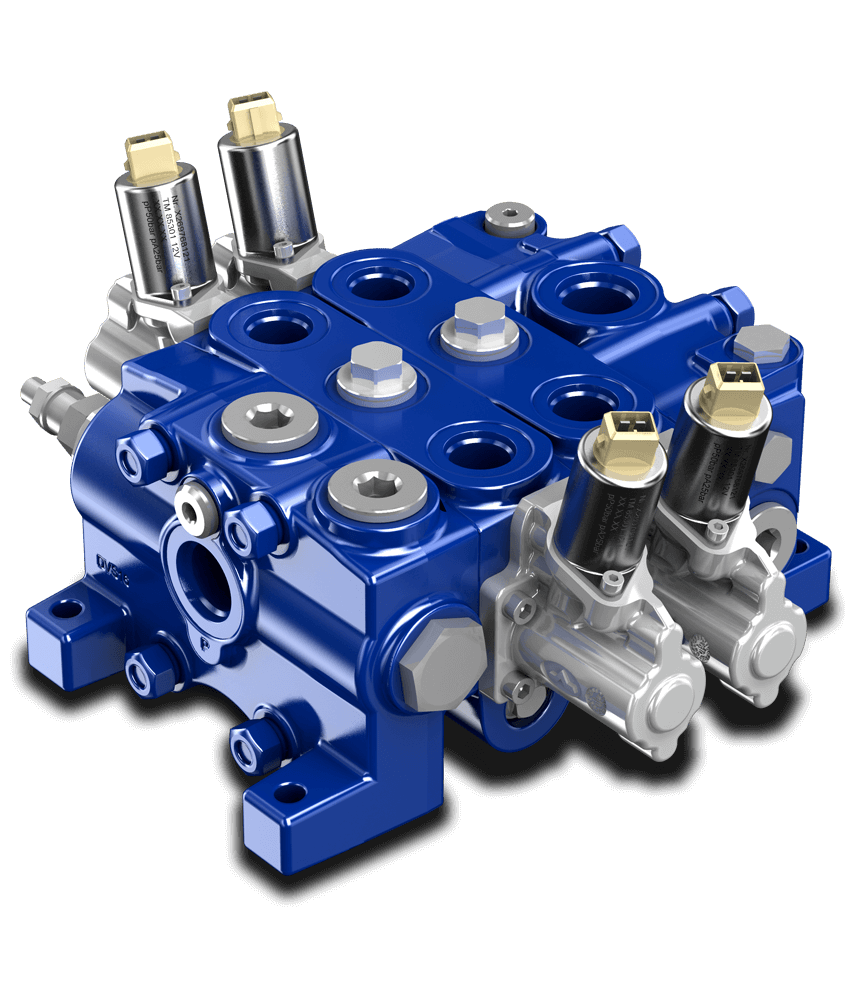

DVS16


Performing, versatile and flexible sectional valve

DVS16 is a versatile, flexible sectional valve, available in several configurations. Special versions for LS variable displacement pumps on request. The valve is suitable for applications such as Backhoe Loaders, Wheel Loaders, Backhoes, Garbage Compactors, Skip and Hook Loaders, Drilling Rigs. - Special inlet section for second pump management - Manual, hydraulic, pneumatic, electro-hydraulic, electro-pneumatic controls - Port valves on working sections.

Nominal Flow Rating l/min - (US gpm): 150 (40)
Max. Pressure bar - (psi): 350 (5100)
Number of Sections: 12
Pitch mm (in): 46 (1,81)
