Sectional valves

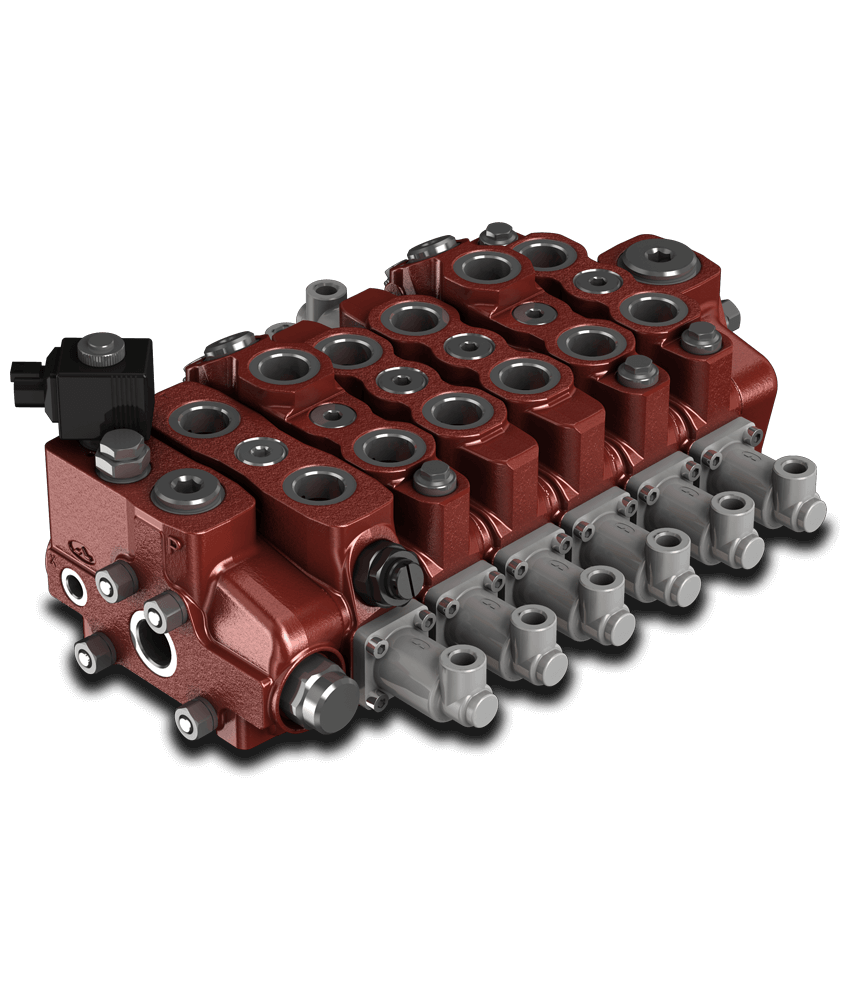

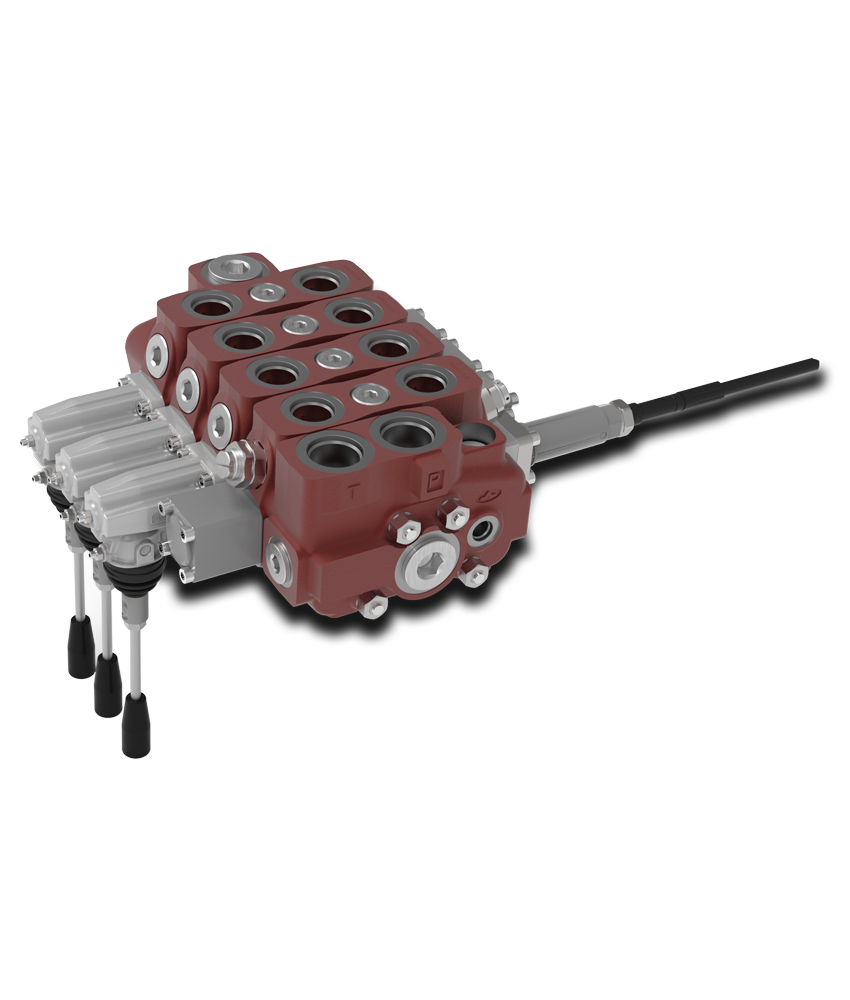

SDS180 - DLS180


Robust, versatile and flexible sectional valve

The SDS180 valve is the ideal partner for large Backhoe Loaders, Agricultural loaders, Forest Cranes, as well as City Trash Compactors. DLS180 is the Load-Sensing version. - Type "Y" free flow gallery - Special inlet covers with priority valve and flow unloader valve - Fitted with a main pressure relief valve and a load check valve on every working section - Available with parallel, tandem or series circuit. Optional carry-over port. - A wide range of antishock+anticavitation port valves. - Intermediate sections for several types of circuit. - Manual, pneumatic, electro-hydraulic, proportional hydraulic and remote with flexible cables controls.

Nominal Flow Rating l/min - (US gpm): 160 (42)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 12
Pitch mm (in): 48 (1,89)
