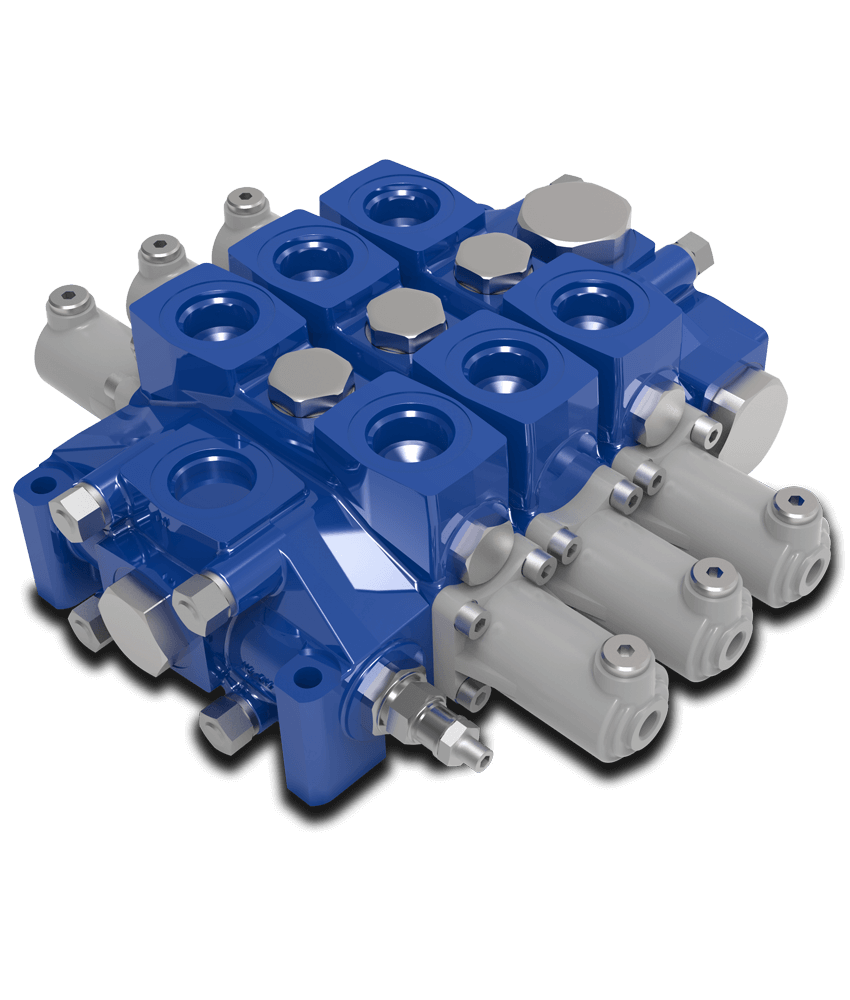

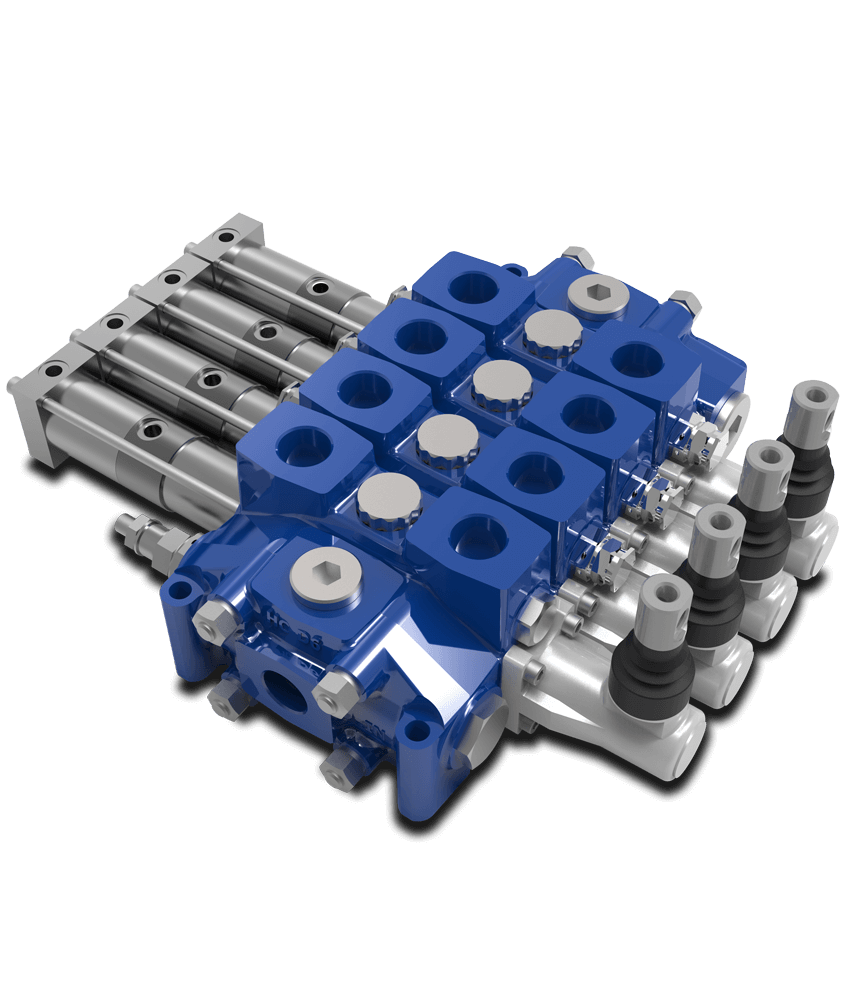

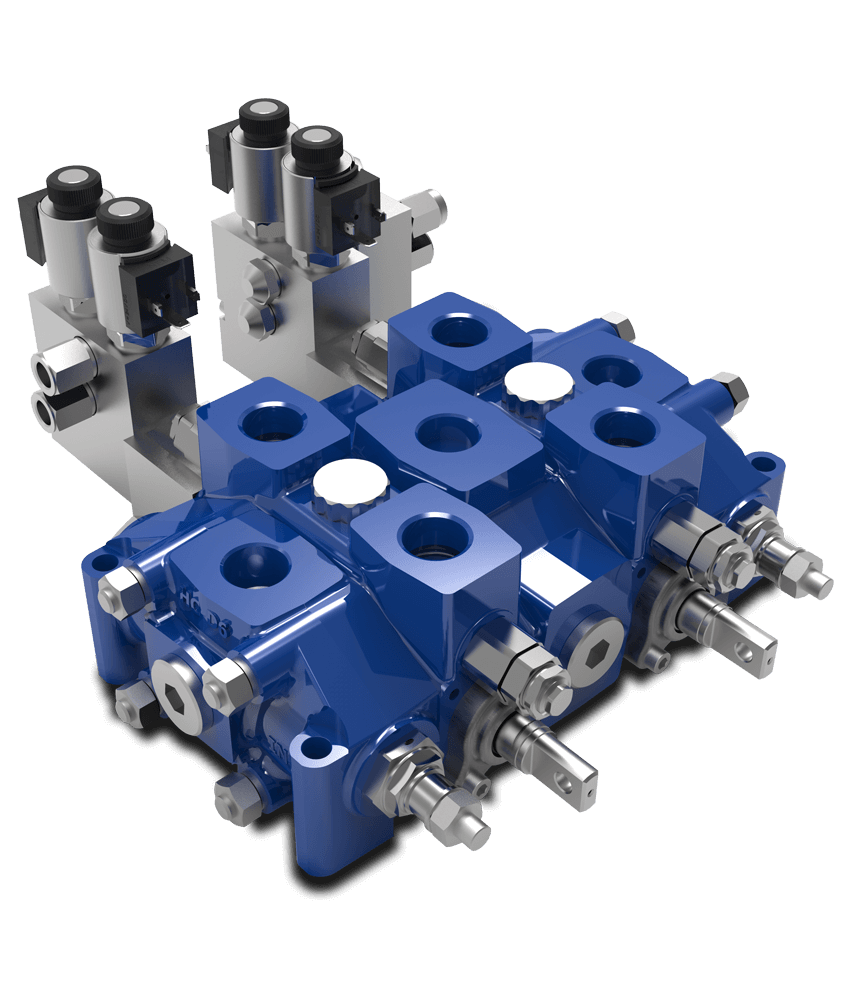

Versatile sectional valve, available in many configurations. Special versions for LS variable displacement pumps available on request. Suitable for several applications including Backhoe loaders, Wheel loaders, Backhoes, Garbage Compactor, Hook and Skip loaders, Drilling machines.

- Special inlet section for parallel valves connection

- Manual, hydraulic, pneumatic, electro-hydraulic and electro-pneumatic controls

- Port valves on working sections.

Nominal Flow Rating l/min - (US gpm): 100 (27)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 12
Pitch mm (in): 46 (1,81)
