8MG

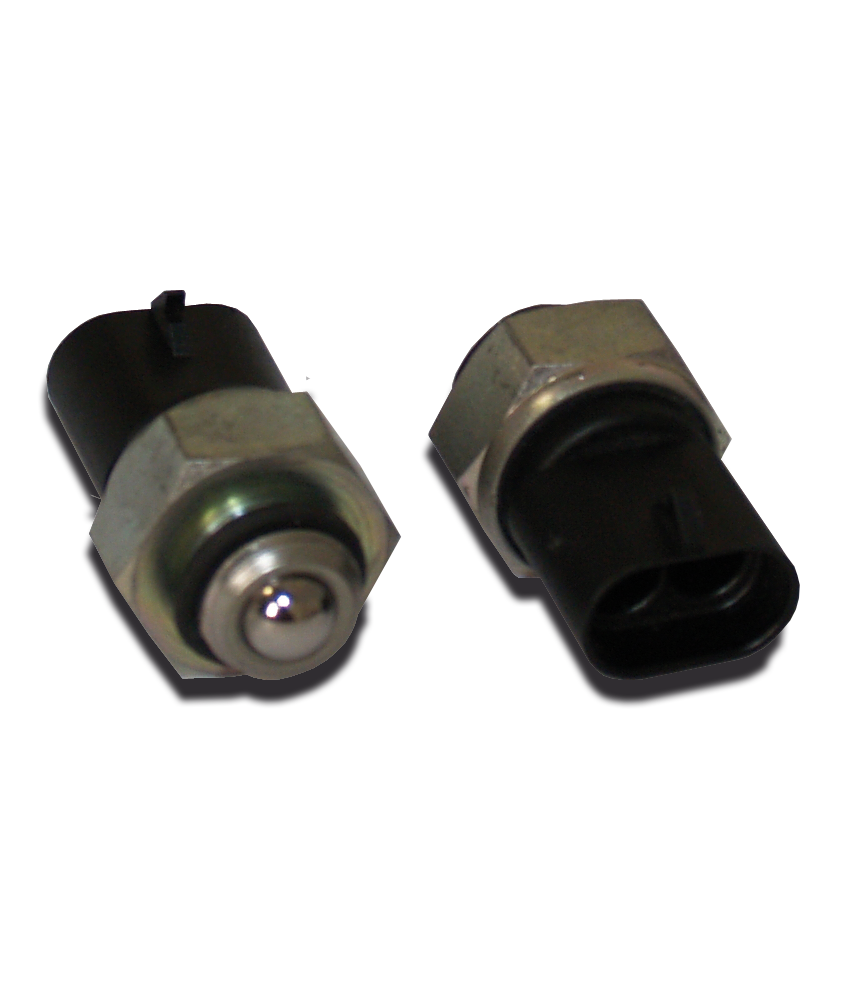

Mechanical spool position sensor

Precision ball switch for spool direction and neutral position detection, with NO and NC circuits in single and redundant configuration.


Voltage supply: from 5 to 24 V
Mechanical life time[cycle]: 1.000.000
Electrical life time [cycle]: 500.000

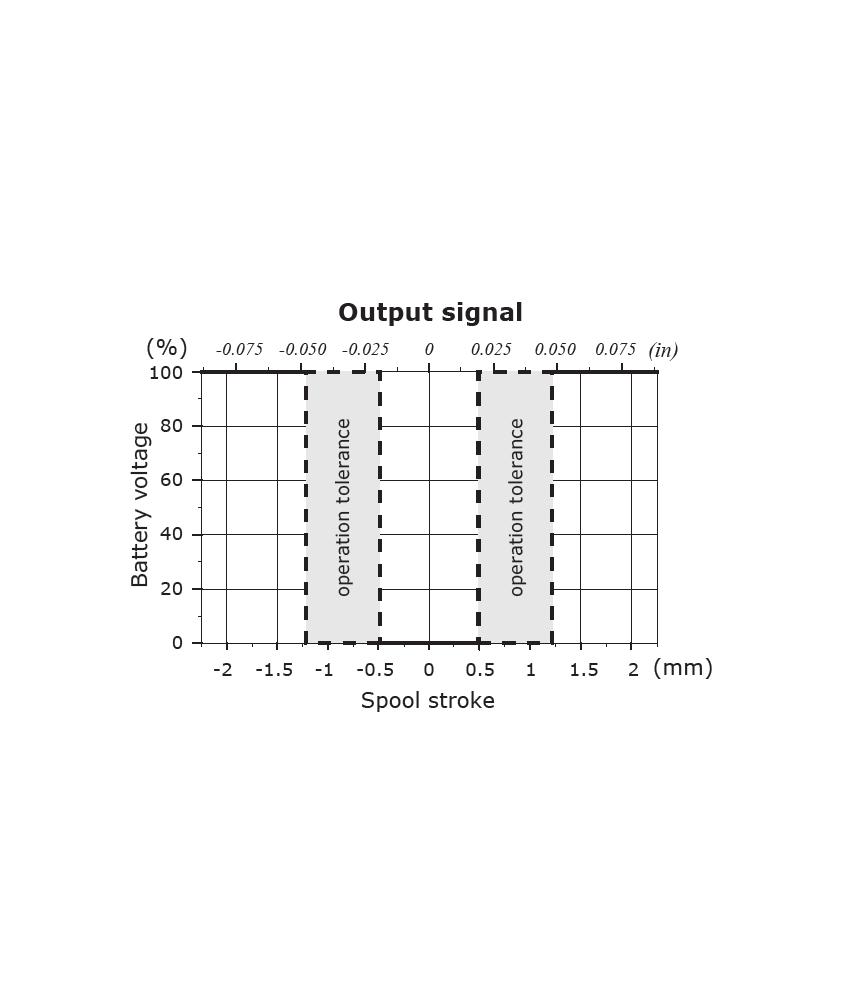

Output signal: Switch Normally Open
Connector: Packard Weather-Pack Female
Weather protection: IP67
Working temperature: from -40 to 120 °C (from -40 to 248 °F)


Downloads
