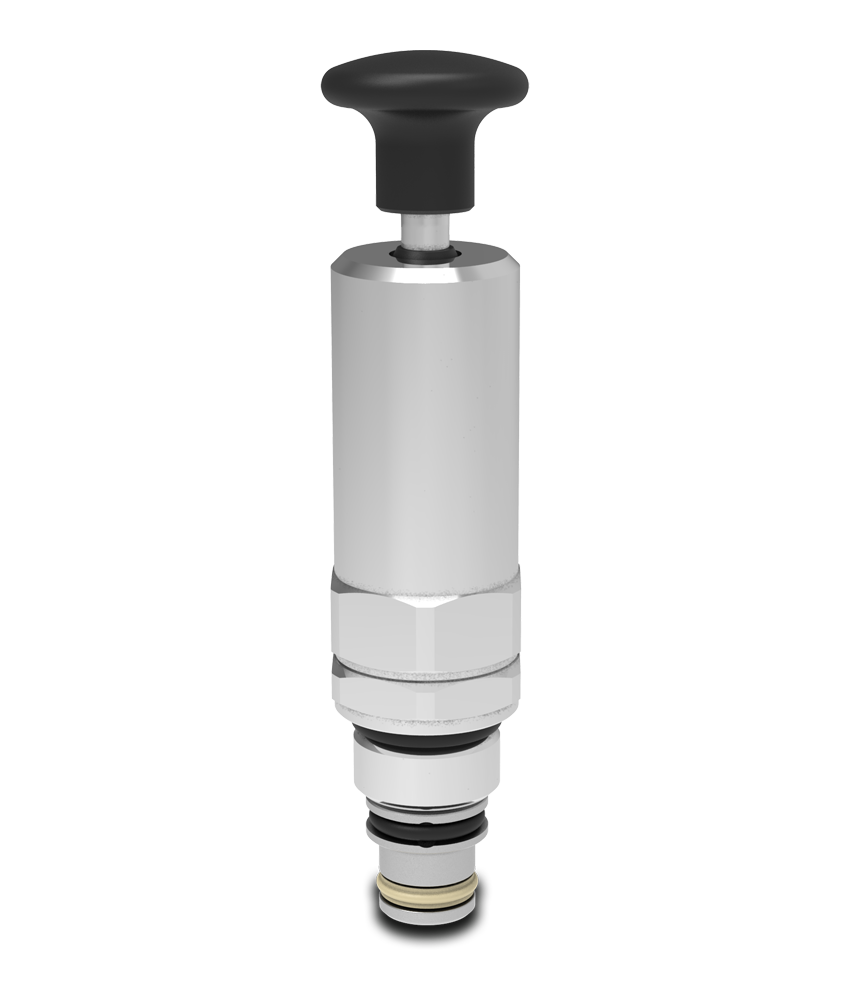

UM08M


2 way, manual operation

This valve is used to pump oil into a circuit in an emergency situation


Operational Type: Mechanical
Flow cm³ - (un³): 1 (13.2) for stroke
Max. Pressure bar - (psi): 210 (3045)
Cavities: SAE 08
